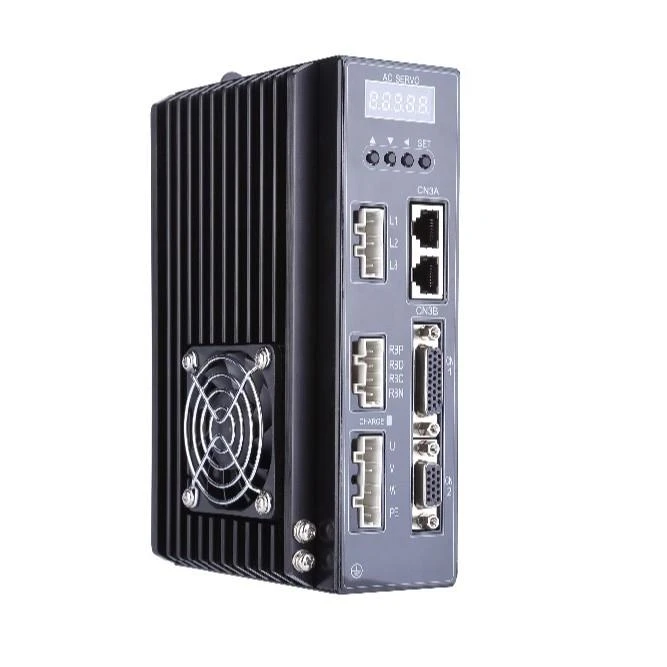

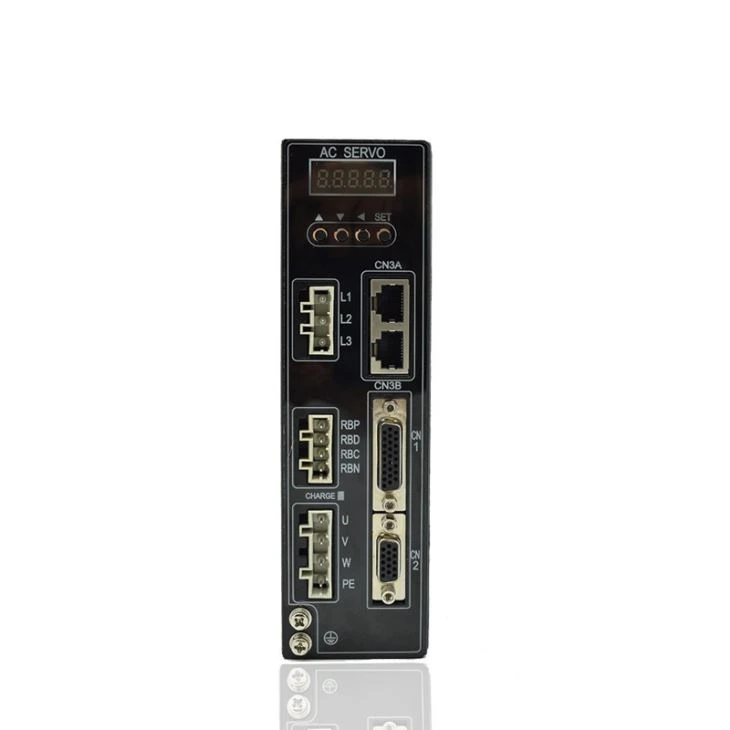

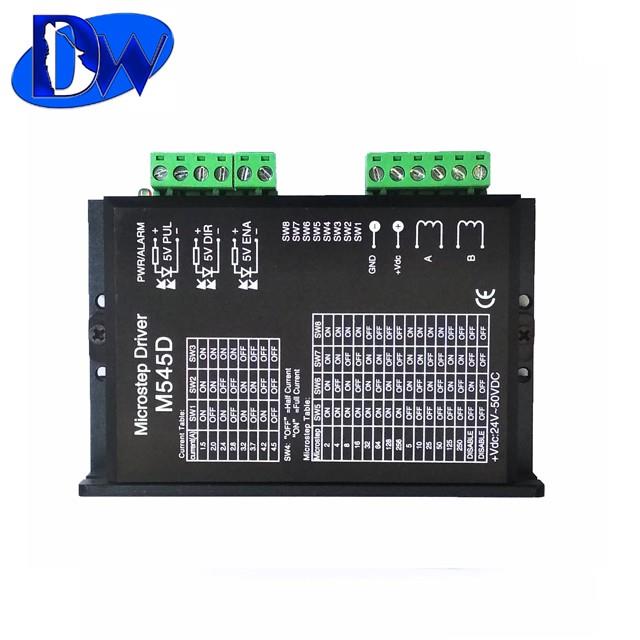

Bldc Motor Driver

Main Supply

1 phase/3 phase
AC220V-240V
50/60Hz

Power Supply for Control Circuit

1 phase 220VAC

Control Method

0: position control
1: velocity control
2: test trial control
3: JOG control
4: torque control

Protect Function

over speed/under voltage/over voltage/over current/over load/encoder error/control supply error/position error

Monitoring Function

velocity/current position/command pulse accumulation/position error/motor torque/motor current/working state

Control Input

1.servo enable 2.alarm clearance 3.CCW driving ban 4.CW driving ban
5.deviation counter clear zero 6.command pulse ban 7.CCW torque limitation 8. CW torque limitation

Control Output

servo ready/servo alarm/GPS test/mechanical brake

Resistance Braking

Built-in/Built-out

Suitable Load

Less than 5 times of the motor inertia

Display

5 LEDs , 4 keys

Command Input

1: pulse+direction
2: CCW/CW
