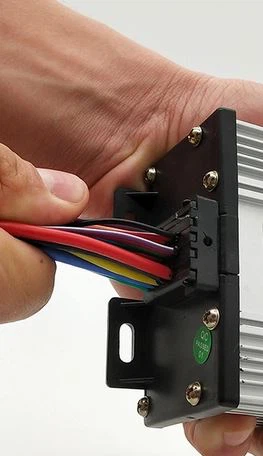

scooter controller 48v:
Rated voltage | DC 24v 36v 48V 60v 72v |
Rated power | 250w-----3000W |
Max current | 15-120A |
Controller category | Brushless direct current |
Applicable model | electric bicycle,electricscooter,electric tricycle ,electric vehicle |
Color | Sliver |
Materials | Aluminum Alloy |
E-Brake Level | E-ABS |
waterproof grade | IP-67 |
scooter controller 48v; Strict raw material management; HIGH quality; low noise and long service life
scooter controller 48v
We can make different specifications as your request.
Any problem when you get the goods, feel free to contact us.
BRUSHLESS DC MOTOR CONTROLLERS' FEATURES Using the intelligent MPU.
Low energy consumption in High-speed, with synchronous rectification PWM circuit.
Battery current limit function can prolong the lifespan of battery sets.
Big starting current provide high starting speed.
Superior anti-interference and anti-shock performance.
Status LED indicates different fault information, it help the users to diagnostics & maintain the controller conveniently.
Throttle
protection function disable the controller if throttle wires become
open, also can prevent the controller operation if the electricity key
is turned on while throttle is applied (For optional).
Manual cruise/auto cruise function are available(For optional).
Auto-matching with all kinds of motors.
Configurable soft/quick start mode.
Online/offline updating function available.
