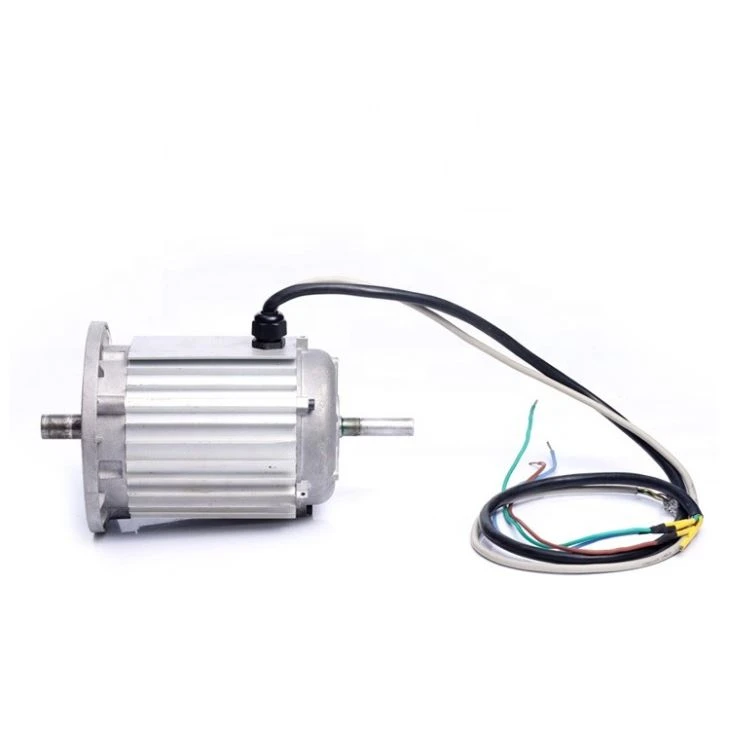

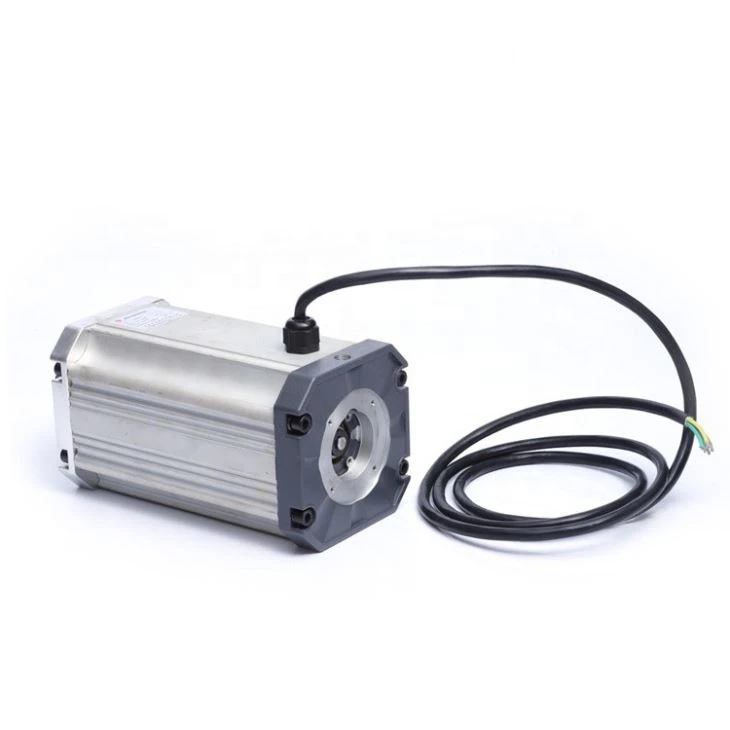

bldc motor for electric motorcycle：
Usage:Boat, Car, Electric Bicycle, Fan, Home Appliance, Shell Eco-marathon Competition Car
Certification:CCC, CE, ROHS, UL
Type:brushless DC motor
Torque:19.1Nm
Construction:Permanent Magnet
Commutation:Brushless
Protect Feature:Drip-proof
Speed(RPM):1500RPM
Continuous Current(A):16.93A
Efficiency:IE 2
Housing:Aluminum Frame
Speed Range:1500rpm
Material:Permanent Magnets
Controller:Customized, Optional
Braker:Optional
Insulation Class:Class F
Enclosure:IP54
Poles:4P, 6P, 8P, 10P...
Wire:100% copper
Buty:S1 (continuous)
bldc motor for electric motorcycle with high reliability,strong overload capacity,good regenerative braking effect
1) The surface is fast cutting, pure metal bright, no painting |
2) Brushless, Long life (bearing’s life), Free maintenance |
| 3) Small size, light weight, great power, simple structure |
4) Excellent starting, no magnetic hysteresis is damping energy consumption, Strong climbing capability |
| 5) High efficiency, wide scope high efficiency, low electric power consumption, long distance for driving |
6) Superior water-proof |
Attention:
1) The motor should be kept in the dry and ventilated room, and should be free from moisture, acidic and alkaline . Please do not put the motor together with magnetic products.
2) The products shouldn’t be overloaded for long time ,the limited current of the controller should be less than 10A.
3) The motor should be free from water while it is working.
